Our Products/3D embossing WPC decking

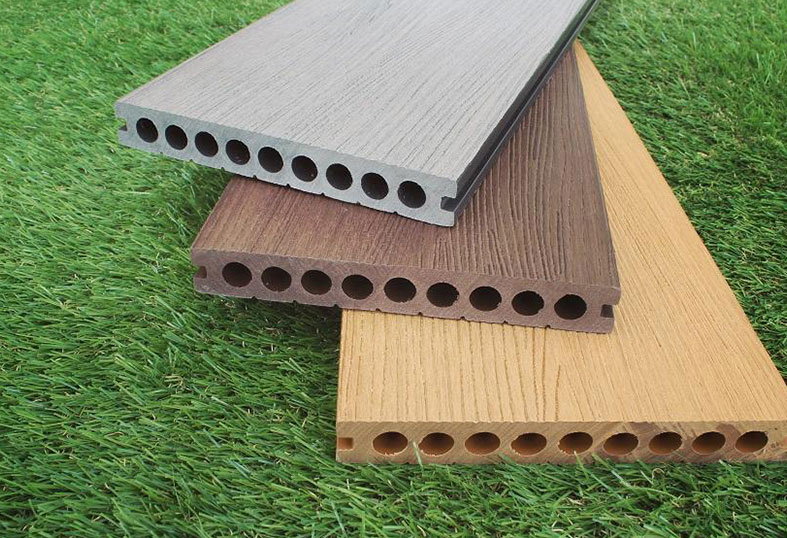

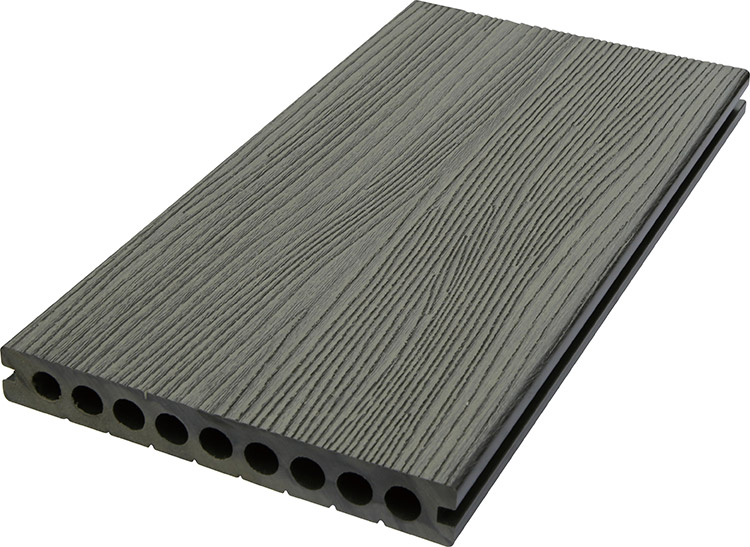

Round hollow online embossing deck

  • Water proof

  • Eco-friendly

  • UV-resist

  • Low maintenance

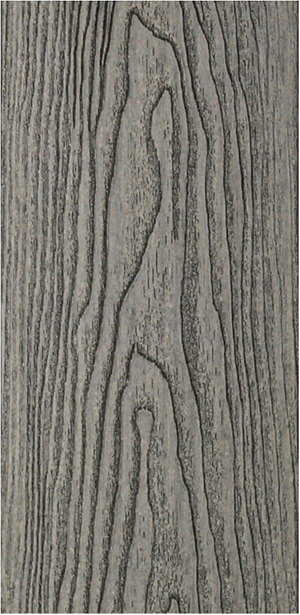

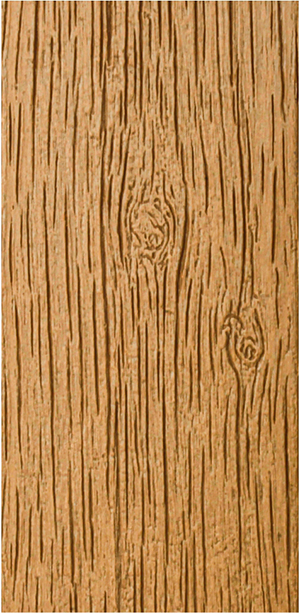

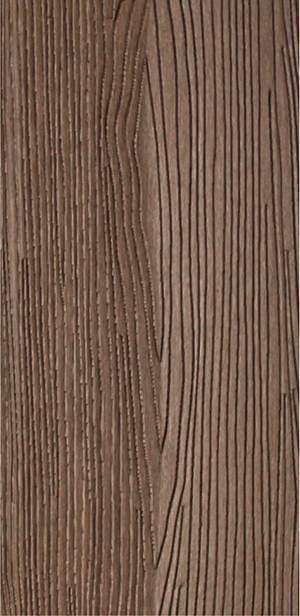

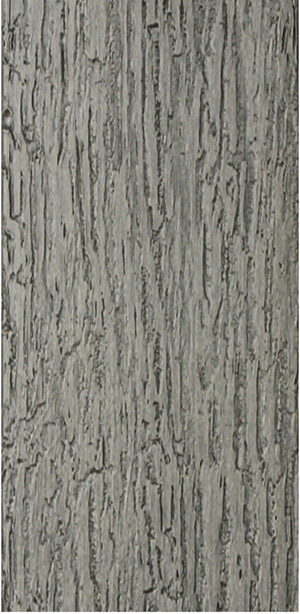

Pattern Selection
  • Classical

  • Modern

  • Natural

  • Antique

undefined
All you need to know

Size: 160*22mm

Model: GW802

Type: 3D online embossing decking

Material: HDPE, wood fiber,additive

Function: Anti-slip, Anti-UV, Water proof, Anti-rot

Length: 2.2m/2.4m/2.9m/3.6m/3.9m or customized

Colors: 12 standard colors for option. Also the color could be customized

Loading: One 20ft container could load around 800-900sqm.


undefined
Product Benefits

√   A variety options of wood relief grained surface

√   Dual sides with different design

√   Rot and insect resistant

√   High anti-slip property

√   Deep embossed wood texture

√   Groove for fastener


Characteristics
Characteristics
Features And Properties

Our 3D embossing decking is hard-wearing and low-maintenance.

The boards are premium decking boards that benefit from having a wood grain texture on one side and a multi-grooved surface on the other.

Unlike timber, our boards retain their strength and durability throughout their life.

It's a long-lasting material composed of a blend of recycled plastic and wood fibers. No need to paint, oil, stain or seal the deck boards.

Stains such as grease, wine or ketchup can be cleaned easily using soapy water.

It is recommended to wash your deck using a pressure washer at least once a year.

With Real Wood Surface

The main property of this product is deep wood grain.

Both extrusion and embossing processes take place on the production line at the same time before the boards are cooling and shaping.

Better slip resistance

Deep embossed textures are more anti-wearing and anti-fading

Better natural visual effect

Perfect 3D wood grain texture on the composite decking with the lastest pressing rollers and the sanding methods



undefined

Grinwood WPC Material Co., Ltd. warrants to the original purchaser  (“Purchaser”) that, for the period of times set forth in the following sentence, under normal use and service conditions, Grinwood product shall be free from material defects in workmanship and materials, and shall not split, splinter, rot or suffer structural damage from termites. The term of such warranty shall be fifteen (15) years from the date of original purchase for a residential application, and ten (10) years from the date of original purchase for a commercial application.

For the 15-year warranty, it is not only a documentation paper for both parties, but also the practical action to solve the problem when it occurs.

Installation


Online embossing WPC deck must be installed using Grinwood clips following the installation instructions.

Typically 22 clips are required for one square meter of the board. These clips effectively secure the board to the joists using the gripping arms at the bottom. The matching use of stainless steel screws require pre-drilling before installation, to ensure a disciplined installation.

The Grinwood deck can be easily removed without the need to dismantle the entire deck. The maximum joist spacing (centre-to-centre distance) is 35cm.

undefined

Grinwood Decking is an environmentally-friendly product.

Grinwood Online Embossing Decking is 90% manufactured with raw materials from the recycling industry.

The quality and environmental performance of wpc is guaranteed as the material used for processing does not contain harmful substances and has passed environmental tests. The material can also be recycled and reused for processing and use, and its properties are very good. While timber forms the majority of the material within our wood plastic decking, recycled plastic and performance enhancing additives make up the rest. These work hand-in-hand to enhance our products, ensuring we offer both authenticity and performance in equal measure. The price is competitive, the wear resistance is high and with long-term uselife.

Technical documents
Drawing display
