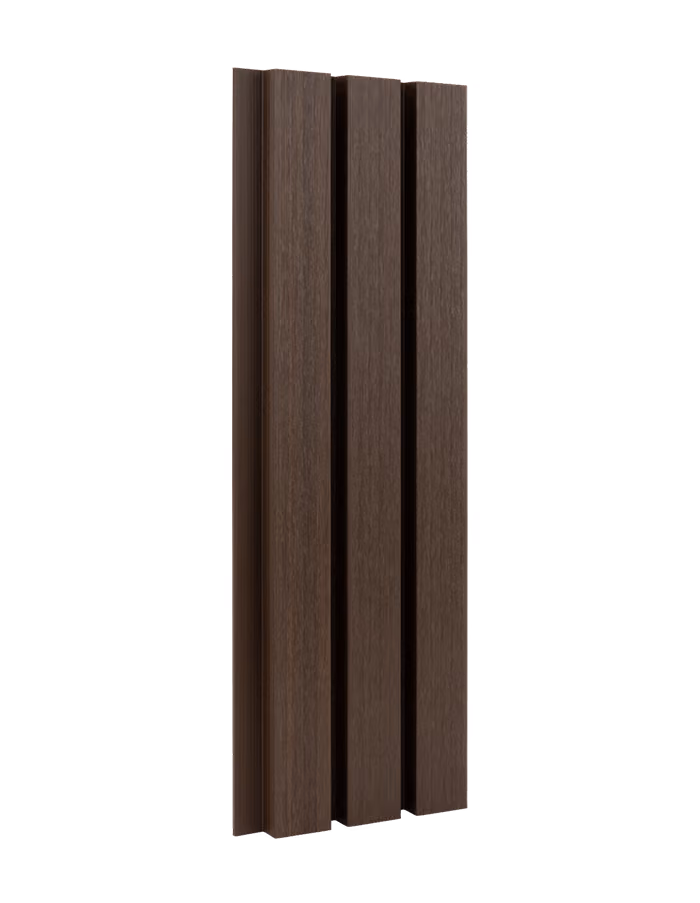

GW937 Shadow Gap Cladding
GW937 is a wide shadow gap board of 205 x 25 mm with deeper shadow lines, designed for large walls. Its 360° coextruded shell protects all four sides, including the edges. Fewer boards cover more wall, so fitting is faster, and concealed clips keep every fixing out of sight.
Material
Wood fibre, HDPE and additives
dimensions
205 x 25 mm
Fasteners

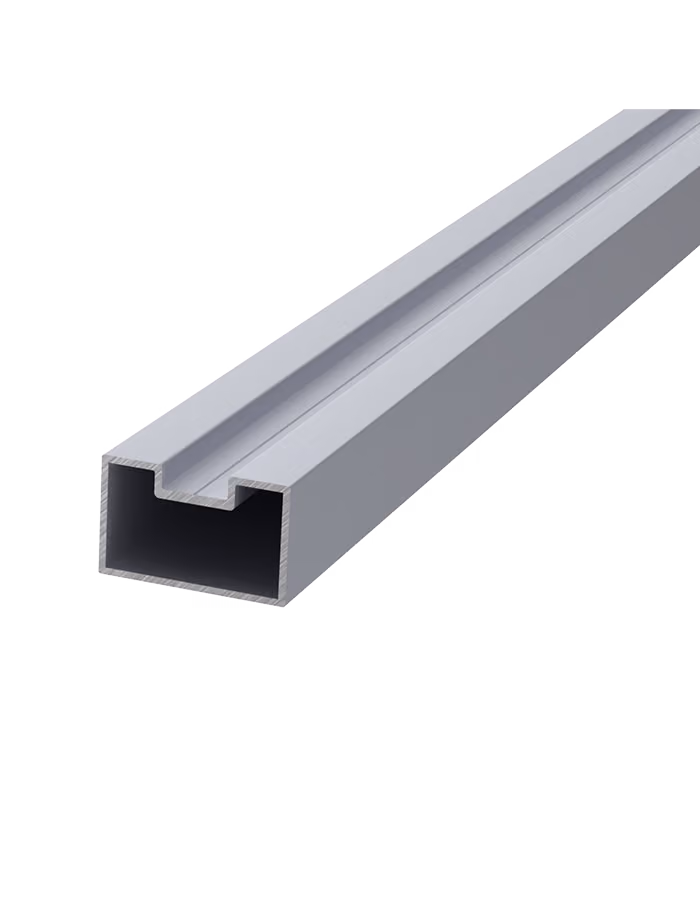

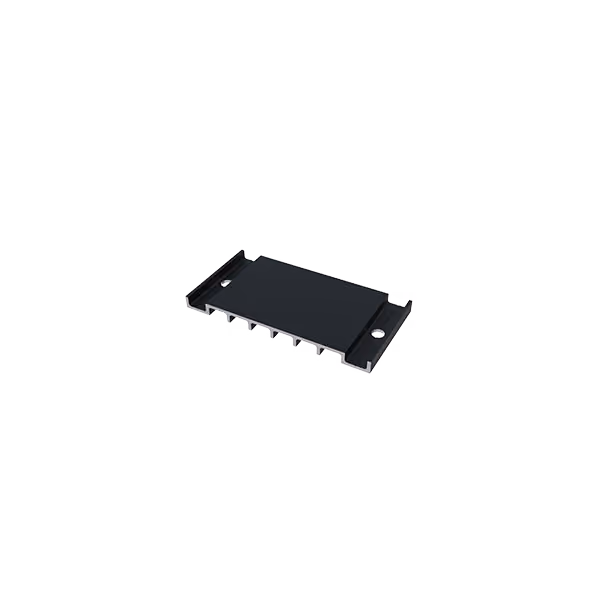

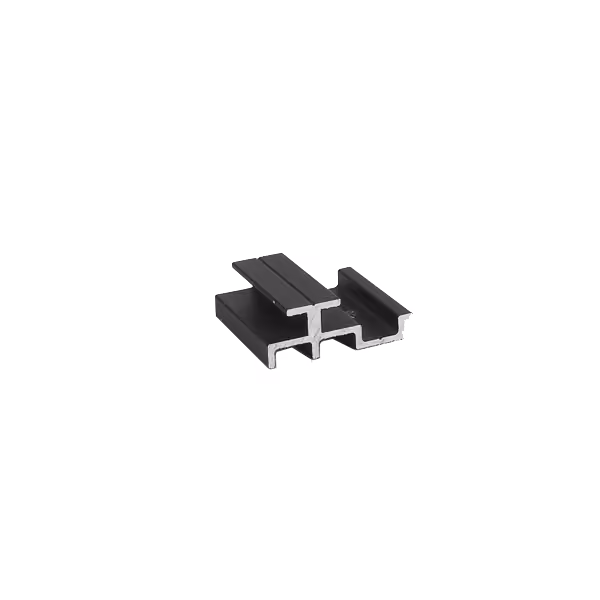

GWA026 aluminium fixing clips on GWA035 aluminium joists
Extrusion type
360° coextrusion
Warranty
15 years
Colors
CN005 Urban Grey
CN006 Sunny Oak
CN013 Taupe
CN031 Charcoal Black
CN038 Stone Grey
CN046 Modern Grey
CN059 Coffee Brown
CN064 Oak
CN019 Ash Grey
CN083 Slate Grey
CN084 Cream Wood
CN087 Deep Walnut
treatments
Starfield
Smooth Surface
Technical drawing
The mold drawing provides a precise technical overview of the profile’s geometry and construction. It reflects the accuracy, stability, and consistency built into every product we manufacture. By sharing these details openly, we help installers, dealers, and partners work with confidence and understand exactly how each profile is engineered.
Built for clean, lasting walls
Slatted profile. Raised blocks and recessed gaps give the look of separate slats, fitted as one board.
Wide board, faster fitting. 205 mm boards with deeper shadow lines cover more wall with fewer boards.
360° coextrusion. The protective shell covers all four sides of the board, edges included.
Concealed clips with expansion space. Boards are clipped to aluminium or timber battens and can expand and contract without stress. Only the first and last board are fixed with visible screws.
Natural textures. Wood grain, smooth and matt surfaces in a wide range of colours. Up close it reads as wood.
Matching trims. F trims finish the first and last board, Y trims the outside corners, all in the board colour.
Customer Projects
Showcase
GW937 Shadow Gap
CN031 Charcoal Black
GW937 Shadow Gap
CN064 Oak
