GW972 Flat Wall Cladding
GW972 is the slimmest board in the flat wall range at 54 mm, for fine, detailed walls. Use it on its own or combine it with GW910 and GW971 on the same clips. Aluminium start, H, corner and end trims finish every run without visible fixings.
Material
Wood fibre, HDPE and additives
dimensions
54 x 18 mm
Fasteners

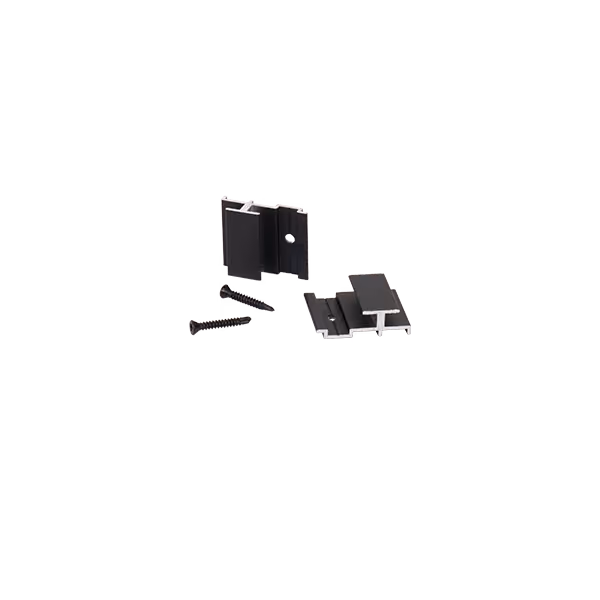

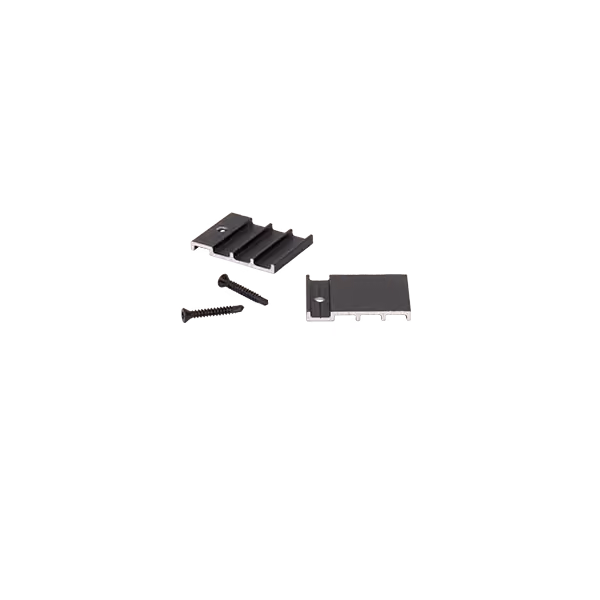

GWA025 aluminium fixing clips and GWA031 support clips
Extrusion type
Coextrusion
Warranty
15 years
Colors
CN005 Urban Grey
CN006 Sunny Oak
CN013 Taupe
CN031 Charcoal Black
CN038 Stone Grey
CN046 Modern Grey
CN059 Coffee Brown
CN064 Oak
CN019 Ash Grey
CN083 Slate Grey
CN084 Cream Wood
CN087 Deep Walnut
treatments

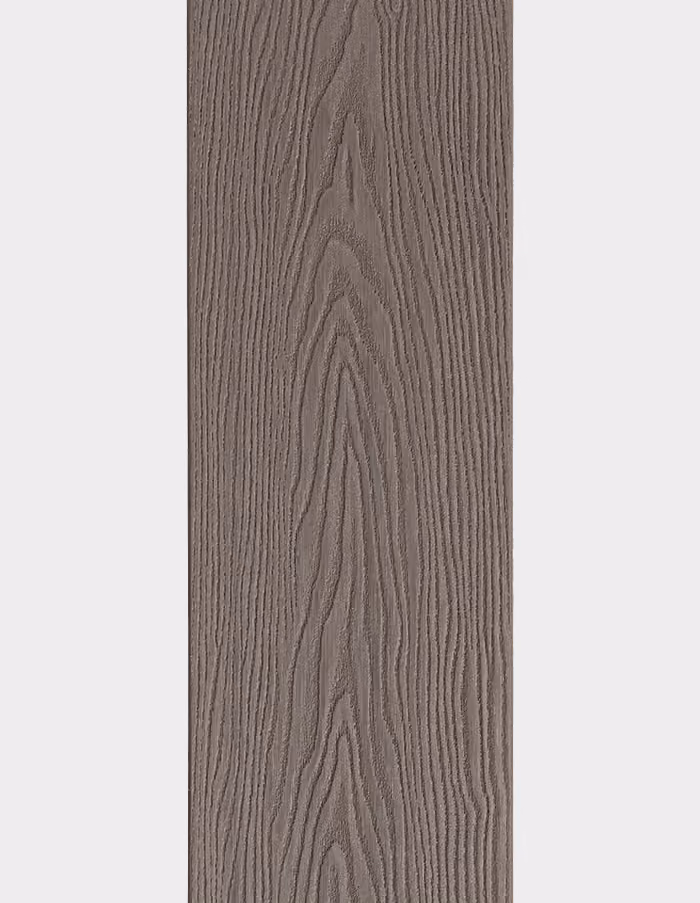

Wood Vein
Smooth Surface
Matt Texture
Technical drawing
The mold drawing provides a precise technical overview of the profile’s geometry and construction. It reflects the accuracy, stability, and consistency built into every product we manufacture. By sharing these details openly, we help installers, dealers, and partners work with confidence and understand exactly how each profile is engineered.
Built for clean, lasting walls
Flat profile. Boards close into a flush, continuous surface with a brushed matt finish.
Three widths, one system. 54, 94 and 160 mm boards use the same clips and can be mixed on one wall.
A hard outer layer surrounds the core, making the board easier to clean and more resistant to scratches and fading.
Concealed clips with expansion space. Boards are clipped to aluminium or timber battens and can expand and contract without stress. Only the first and last board are fixed with visible screws.
Natural textures. Wood grain, smooth and matt surfaces in a wide range of colours. Up close it reads as wood.

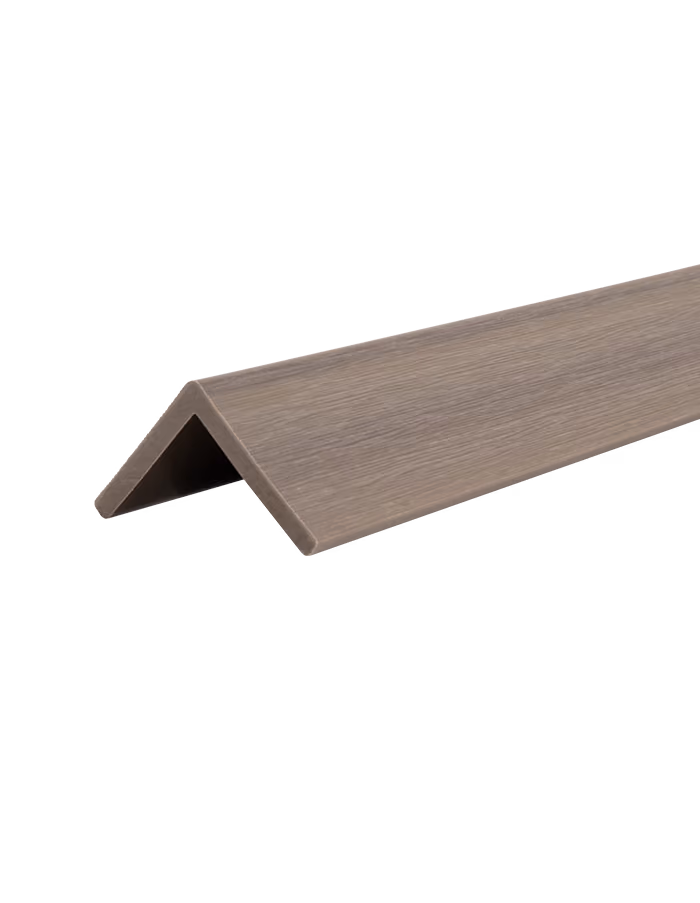

Aluminium trim system. Start, H, corner and end trims finish every run, with no cutting or mitring at corners.
Customer Projects
Showcase

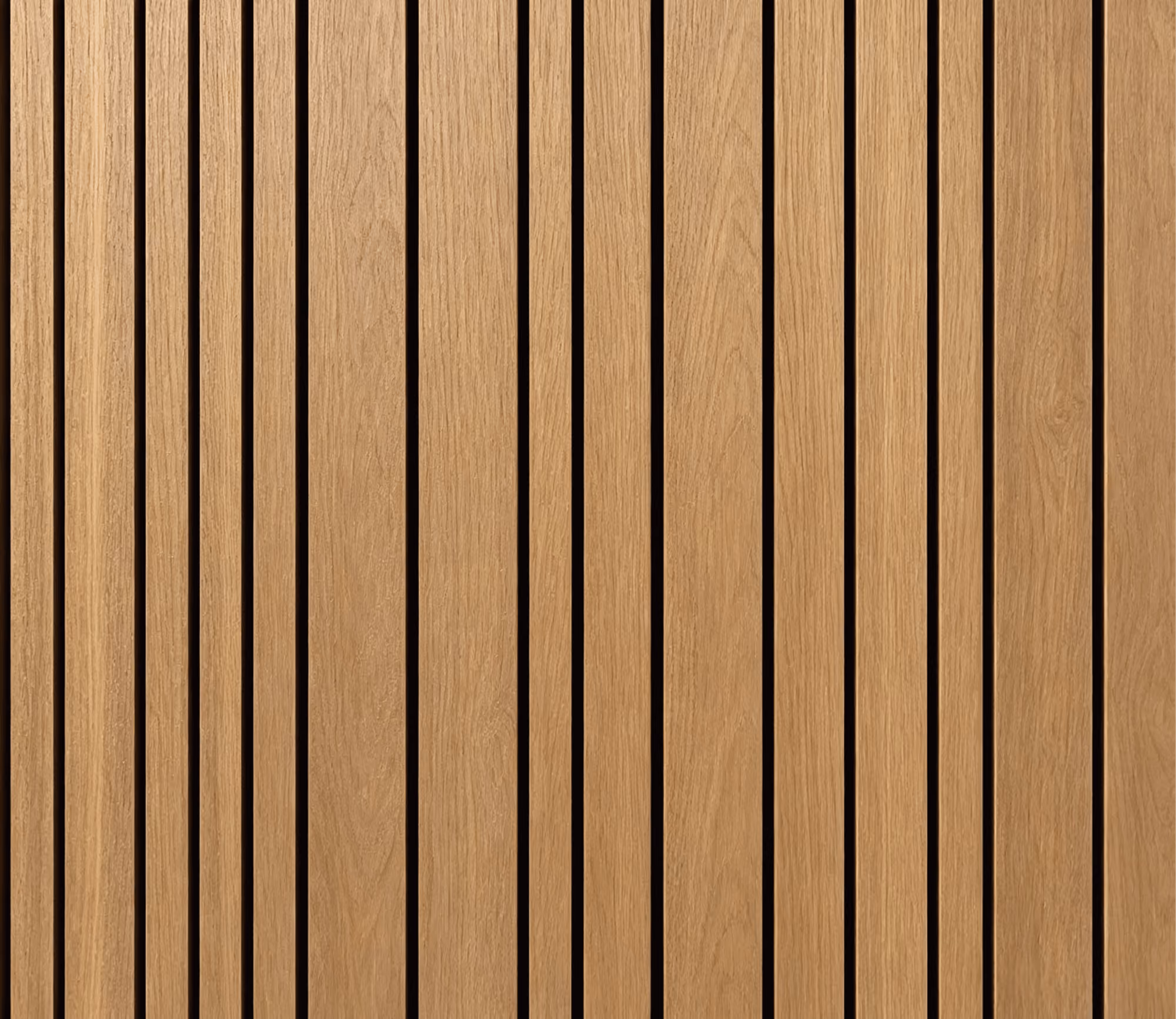

GW910 GW971 GW972 Combo
CN064 Oak
